EasyPac

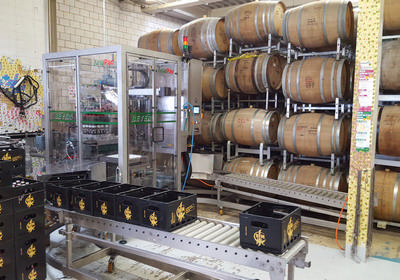

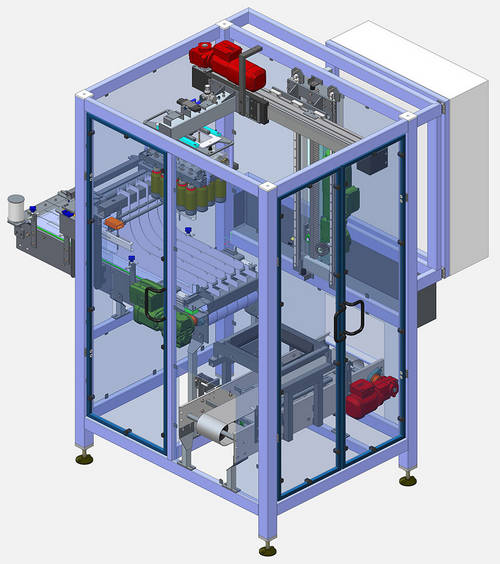

Bottle Packer/Unpacker Type EasyPac-M
- Base frame made out of stainless steel profile tube
- Panelling either makrolon or safety glass
- Motoric lifting axle
- Motoric transverse axis
- Power up to 500 cycles
- Up to 600 mm in block length
- Bottle table in H, D or L – version
- Hinge chains made of stainless steel or plastic
- Belt transport with integrated stoppers
- Box centred frame
- Siemens S7 – 1200
- TouchPanel 9”
- TIA portal
- Stainless steel control cabinet
- Gripper heads fixed, single and double adjustable
- Gripper heads with pull tabs
- Gripper heads with automatic spindle adjustment
- Pack tulips as long-term gripper tulips
- Pack tulips with inflatable cuff
- Pack tulips for swing-top bottles
- Pack tulips for PET bottles
- Vacuum gripper
- Label orientation function
- Bracket rotation for unpacking
- Full crate inspection
- Packing head magazine
Bottle Packer/Unpacker Type EasyPac-P
- Base frame made out of stainless steel profile tube
- Panelling either makrolon or safety glass
- Motoric lifting axle
- Motoric transverse axis
- Power up to 350 cycles
- Up to 600 mm in block length
- Bottle table in H, D or L – version
- Hinge chains made of stainless steel or plastic
- Belt transport with integrated stoppers
- Box centred frame
- Siemens S7 – 1200
- TouchPanel 9”
- TIA portal
- Stainless steel control cabinet
- Gripper heads fixed, single and double adjustable
- Gripper heads with pull tabs
- Gripper heads with automatic spindle adjustment
- Pack tulips as long-term gripper tulips
- Pack tulips with inflatable cuff
- Pack tulips for swing-top bottles
- Pack tulips for PET bottles
- Vacuum gripper
- Label orientation function
- Bracket rotation for unpacking
- Full crate inspection
